Automating Veza Access Requests for the Enterprise: Integrating Veza with ServiceNow

Overview: Streamlining Access Requests

Many organizations struggle to automate access requests because of fragmented identity data. Current solutions often force a choice between efficient processes and rigorous security.

Veza’s APIs solve this by unifying your data, allowing you to automate access at scale without lowering your governance standards.

The Solution: Veza + ServiceNow Integration

We built an integration that combines Veza’s Identity Authorization Platform with ServiceNow’s IT Service Management capabilities to create a seamless, automated access request workflow.

The outcome? Users can request access to multiple resources through a familiar catalog interface, IT admins and/or managers can approve with one click, and access is automatically provisioned—all while maintaining a complete audit trail.

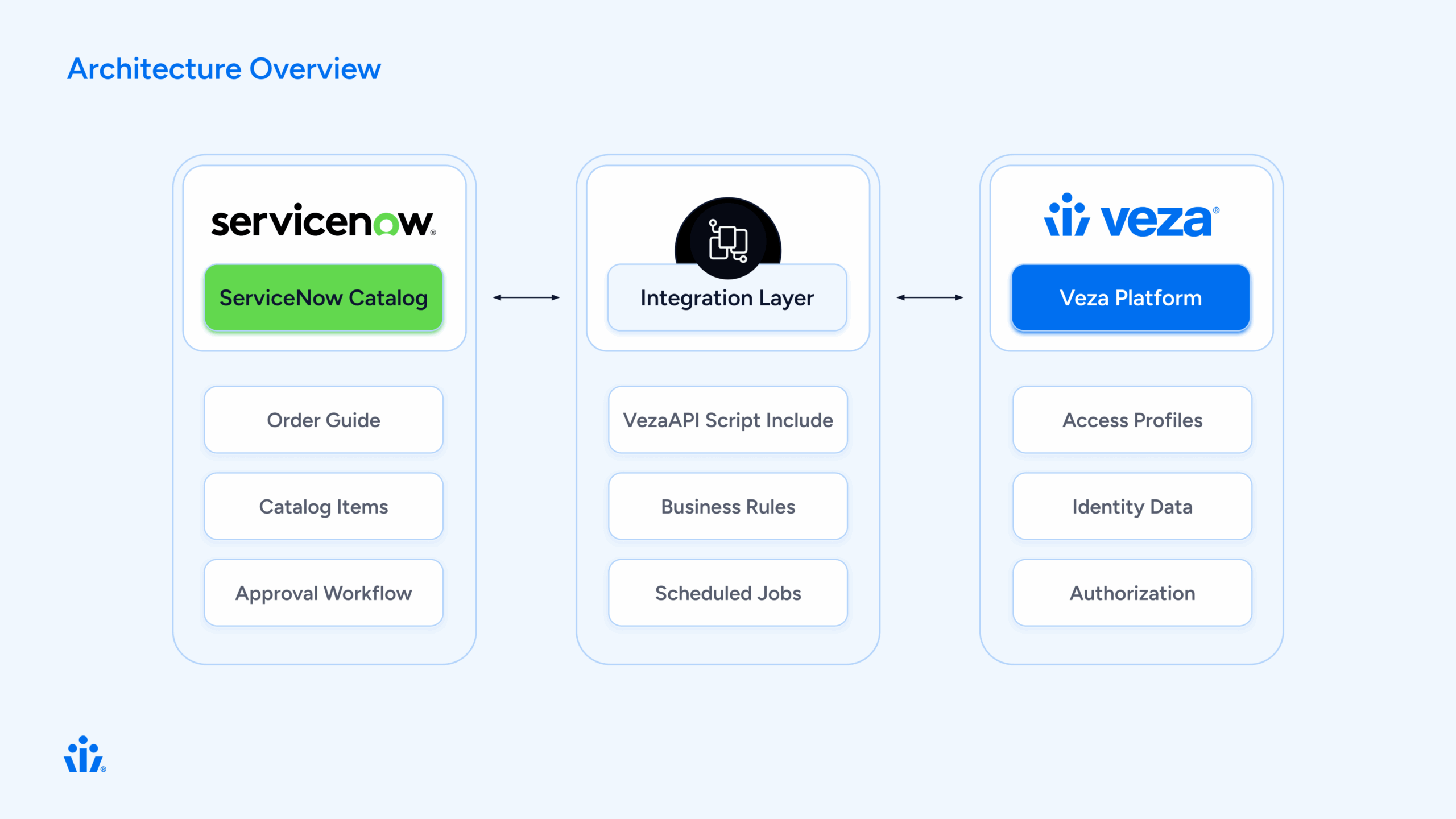

Architecture Overview

The Components

Our integration consists of five key components:

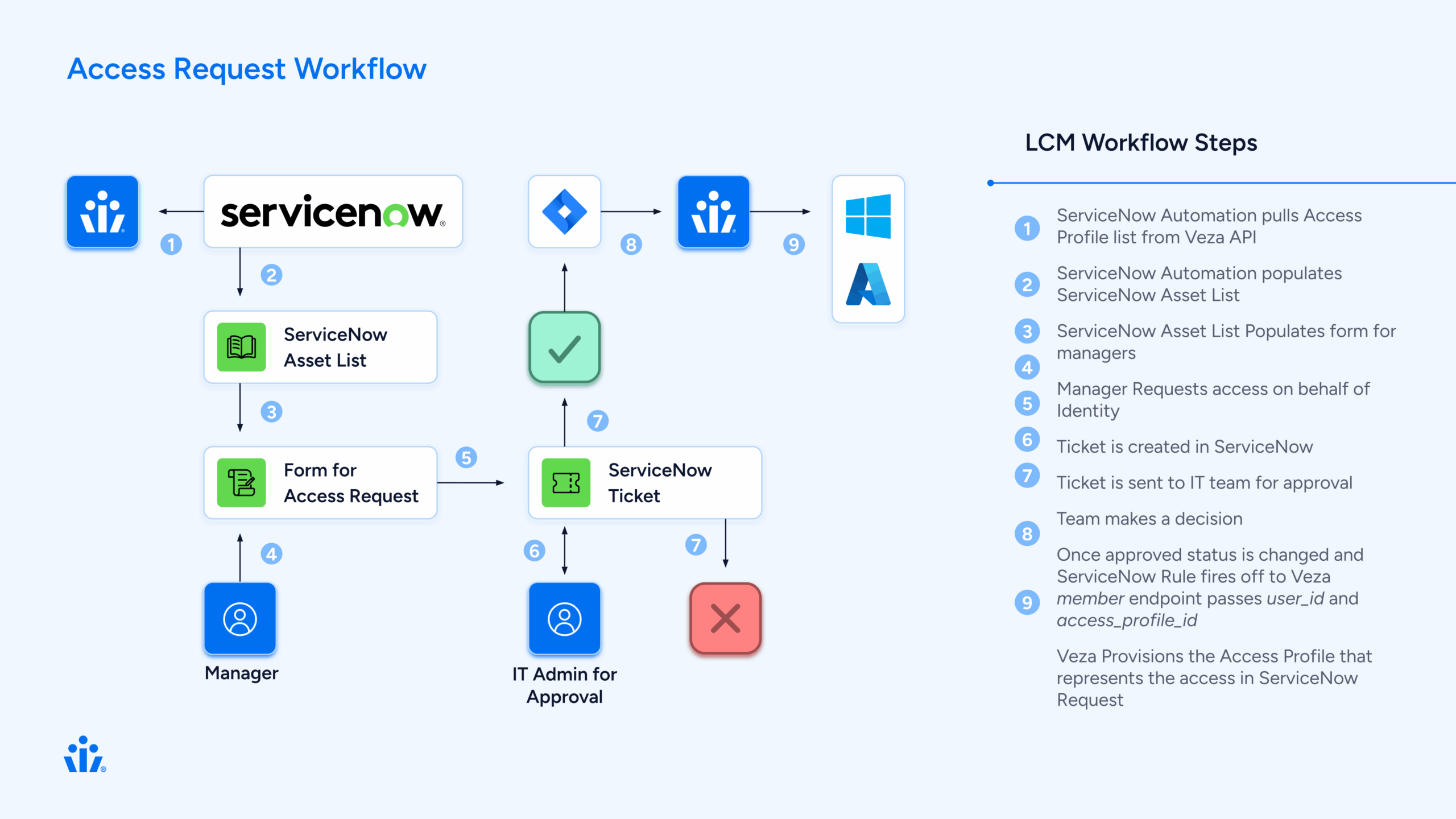

How It Works: The User Journey

Let’s walk through a typical access request from start to finish.

Step 1: User Requests Access

Sarah, a new data analyst, needs access to several shared drives and applications to do her job.

Step 2: Manager Approval

David, Sarah’s manager, receives an approval notification in ServiceNow. He can:

1. Review the request details
2. See the business justification
3. Approve or reject each profile individually

Step 3: IT Review (Optional)

For sensitive access profiles, an IT task is created after manager approval:

1. IT staff reviews the request
2. Verifies the user’s need for access
3. Completes the task

Step 4: Admin Approval

For high-privilege access, an admin provides final approval:

1. Security admin reviews the complete request chain
2. Sees manager and IT approvals
3. Makes final decision

Step 5: Automatic Provisioning

This is where the magic happens. When all approvals are complete:

The business rule triggers:

// Veza Access Grant Handler triggers on IT task close
1. Get the RITM associated with the task
2. Extract the veza_profile_id from the RITM variables
3. Look up Sarahs identity in Veza
4. Call Veza API: addMembersToAccessProfile()
5. Veza adds Sarah to the access profile
6. Veza syncs to downstream systems (AD, AWS, etc.)
7. Update RITM: "Access granted successfully"

Within minutes, Sarah has access to all three systems she requested. No manual work required.

Step 6: Confirmation

Sarah receives a notification:

“Your access request has been fulfilled. You now have access to Data Analytics – Shared Drive.”

Technical Deep Dive

⚙️ Component 1: VezaAPI Script Include

This is the heart of the integration—a JavaScript class that wraps the Veza REST API.

Key Methods:

var VezaAPI = Class.create();
VezaAPI.prototype = {
    initialize: function() {
        this.baseUrl = gs.getProperty('veza.api.url');
        this.apiToken = gs.getProperty('veza.api.token');
    },

    // Get all access profiles from Veza
    getAccessProfiles: function() {
        var endpoint = '/api/private/lifecycle_management/access_profiles';
        return this._makeRequest('GET', endpoint);
    },

    // Look up a user by email
    getUserByEmail: function(email) {
        var response = this.getIdentities();
        // Search through identities to find matching email
        // Return user ID if found
    },

    // Add user to access profile
    addMembersToAccessProfile: function(profileId, userIds) {
        var endpoint = '/api/private/lifecycle_management/access_profiles/'
                      + profileId + '/versions/1/members';
        var payload = {
            access_profile_id: profileId,
            identity_ids: userIds,
            type: 'ADD',
            version_number: 1
        };
        return this._makeRequest('PUT', endpoint, payload);
    }
};

⚙️ Component 2: Catalog Sync

The catalog sync process keeps ServiceNow in sync with Veza’s access profiles.

The sync script:

function syncVezaCatalogItems() {
    // 1. Connect to Veza
    var vezaAPI = new VezaAPI();
    var response = vezaAPI.getAccessProfiles();

    // 2. For each profile from Veza
    for (var i = 0; i < profiles.length; i++) {
        var profile = profiles[i];

        // 3. Create or update catalog item
        var grItem = new GlideRecord('sc_cat_item');
        grItem.name = profile.name;
        grItem.category = 'Veza Access Profiles';
        grItem.insert();

        // 4. Create variables
        // Variable 1: business_justification (user input)
        // Variable 2: veza_profile_id (hidden, from Veza)
    }
}

⚙️ Component 3: Approval Workflow

One of the trickiest parts of the integration was getting the approval workflow right. There were many iterations using multiple flows but we were able to distill the process into one buisness rule.

The Solution: Keep only ONE business rule that creates approvals.

// Veza Create Manager Approval (order 50)
(function executeRule(current, previous) {
    // Only run for Veza catalog items
    if (!isVezaAccessRequest(current)) return;

    // Create manager approval
    var grApproval = new GlideRecord('sysapproval_approver');
    grApproval.sysapproval = current.sys_id;
    grApproval.approver = current.request.requested_for.manager;
    grApproval.state = 'requested';
    grApproval.insert();
})(current, previous);

⚙️ Component 4: Access Provisioning

The final piece: actually granting access in Veza when approvals complete.

// Veza Access Grant Handler
// Triggers: After IT task is closed complete
(function executeRule(current, previous) {
    // 1. Verify task was approved
    if (current.state != 3 || current.approval != 'approved') return;

    // 2. Get the RITM
    var grRITM = new GlideRecord('sc_req_item');
    grRITM.get(current.request_item);

    // 3. Get Veza profile ID from RITM variables
    var profileId = getVariable(grRITM, 'veza_profile_id');

    // 4. Look up user in Veza
    var userEmail = grRITM.request.requested_for.email;
    var vezaUserId = getVezaUserId(userEmail);

    // 5. Grant access via Veza API
    var vezaAPI = new VezaAPI();
    var result = vezaAPI.addMembersToAccessProfile(profileId, [vezaUserId]);

    // 6. Update RITM
    if (result.success) {
        grRITM.state = 3; // Closed Complete
        grRITM.work_notes = 'Access granted successfully in Veza.\n' +
                           'Veza User ID: ' + vezaUserId;
        grRITM.update();
    }
})(current, previous);

The Order Guide Approach

We chose to use ServiceNow’s Order Guide feature rather than building a custom spawner. Here’s why:

The ServiceNow Order Guide gives users a familiar shopping cart experience: browse profiles, add the ones you need, and check out once.

Data Flow: Request to Provisioning

Let’s trace a single request through the entire system:

Initial Request (t=0)

User submits Order Guide with 3 profiles
    ↓
ServiceNow creates 3 RITMs
    ↓
RITM 1: "Data Analytics - Shared Drive"
  Variables:
    - business_justification: "Need access for Q4 reporting"
    - veza_profile_id: "019838eb-fc0e-7797-9bee-ea38534fb7c3"
  State: Open
  Approval: Requested

Manager Approval (t=5 minutes)

Manager approves RITM 1
    ↓
Business Rule: VezaCreateITTask triggers
    ↓
IT Task created for RITM 1
  State: Open
  Assignment: IT Ops group

IT Task Completion (t=30 minutes)

IT staff closes IT task as "Approved"
    ↓
Business Rule: VezaAccessGrantHandler triggers
    ↓
Step 1: Get RITM data
  - Requested for: sarah.jones@company.com
  - Profile ID: 019838eb-fc0e-7797-9bee-ea38534fb7c3
    ↓
Step 2: Look up user in Veza
  - API: GET /api/private/lifecycle_management/identities
  - Find: sarah.jones@company.com
  - Result: Veza User ID = 01982f77-588b-79b7-bd67-bcc6513344dd
    ↓
Step 3: Grant access in Veza
  - API: PUT /access_profiles/{profileId}/versions/1/members
  - Body: {
      access_profile_id: "019838eb...",
      identity_ids: ["01982f77..."],
      type: "ADD",
      version_number: 1
    }
  - Response: 200 OK
    ↓
Step 4: Veza provisions access
  - Veza adds user to access profile
  - Queues sync to Active Directory
  - Adds user to "Data-Analytics-SharedDrive" AD group
  - Group permissions grant access to shared drive
    ↓
Step 5: Update ServiceNow
  - RITM state: Closed Complete
  - Work notes: "Access granted successfully in Veza.\nVeza User ID: 01982f77..."
  - User notified via email

Total time: Under 1 hour (vs. days for manual process)

Key Design Decisions

1. Why Store Profile ID in Variables?

Each catalog item has a hidden variable called veza_profile_id that stores the Veza profile UUID.

2. Why One Approval Business Rule?

We initially had three business rules creating approvals, resulting in 2-3 approvals per RITM.

The solution: Disable all but one.

Key lesson: ServiceNow business rules run in order. If multiple rules can create approvals, they will. Better to have one well-designed rule than multiple competing ones.

3. Why Trigger on IT/Manager Task Close?

We trigger access provisioning when the IT task closes (not when admin approves).

4. Why Not Cache Veza Data?

We call Veza APIs in real-time rather than caching user data in ServiceNow.

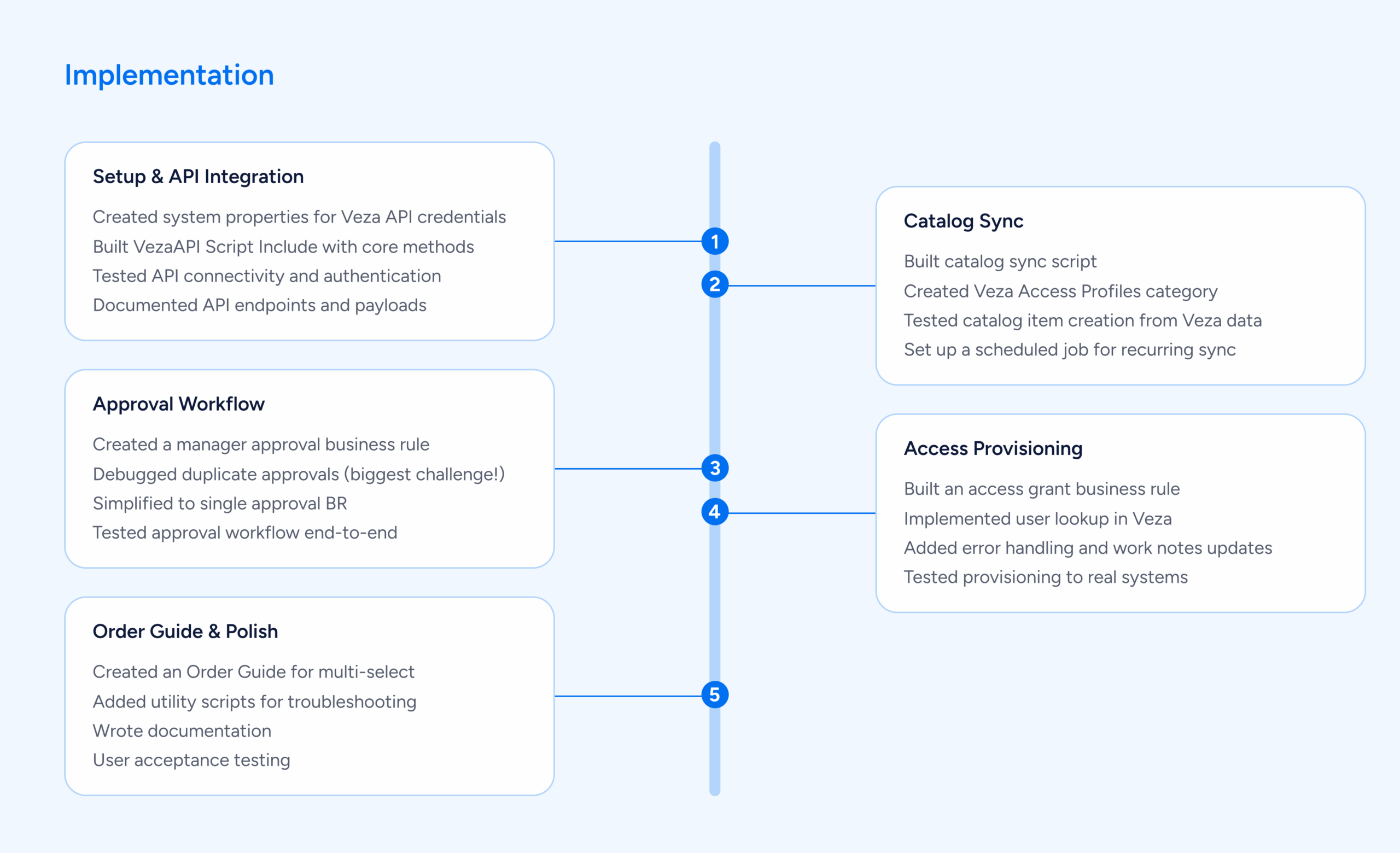

Implementation Timeline

Challenges We Overcame

🚵 Challenge 1: Duplicate Approvals

Problem: Each RITM was getting 2-3 approval records instead of 1.

Root cause: Multiple business rules all thought they should create approvals.

Solution: Disabled all but one approval-creating business rule. Added logging to track which rules were firing.

Lesson: Less is more. One well-designed rule beats multiple competing ones.

🚵 Challenge 2: Variable Access in Business Rules

Problem: Accessing catalog variables from business rules is tricky in ServiceNow.

Variables exist in three tables:

• item_option_new – Variable definition
• sc_item_option – Variable value
• sc_item_option_mtom – Links value to RITM

Solution: Built a helper function that navigates these relationships:

function getVariable(ritm, varName) {
    var grMTOM = new GlideRecord('sc_item_option_mtom');
    grMTOM.addQuery('request_item', ritm.sys_id);
    grMTOM.query();

    while (grMTOM.next()) {
        var grOption = new GlideRecord('item_option_new');
        if (grOption.get(grMTOM.sc_item_option.item_option_new)) {
            if (grOption.name == varName) {
                return grMTOM.sc_item_option.value.toString();
            }
        }
    }
    return null;
}

🚵 Challenge 3: User Identity Mapping

Problem: ServiceNow and Veza might have users with different identifiers.

ServiceNow: john.smith@company.com
Veza: UUID 01982f77-588b-79b7-bd67-bcc6513344dd

Solution: VezaAPI.getUserByEmail() searches Veza identities by email and returns the Veza UUID.

Fallback: If email doesn’t match exactly, we:

1. Normalize emails (lowercase, trim)
2. Check multiple email fields (email, primary_email, username)
3. Log detailed error if user not found

🚵 Challenge 4: API Error Handling

Problem: What if Veza API is down when we try to provision?

Solution: Comprehensive error handling:

try {
    var result = vezaAPI.addMembersToAccessProfile(profileId, [userId]);

    if (result.success) {
        grRITM.state = 3; // Closed Complete
        grRITM.work_notes = 'Access granted successfully';
    } else {
        grRITM.state = 4; // Closed Incomplete
        grRITM.work_notes = 'ERROR: Failed to grant access - ' + result.error;
    }
} catch (ex) {
    grRITM.state = 4; // Closed Incomplete
    grRITM.work_notes = 'ERROR: Exception - ' + ex.message;
}

RITM is marked “Closed Incomplete” so IT can intervene and retry manually.

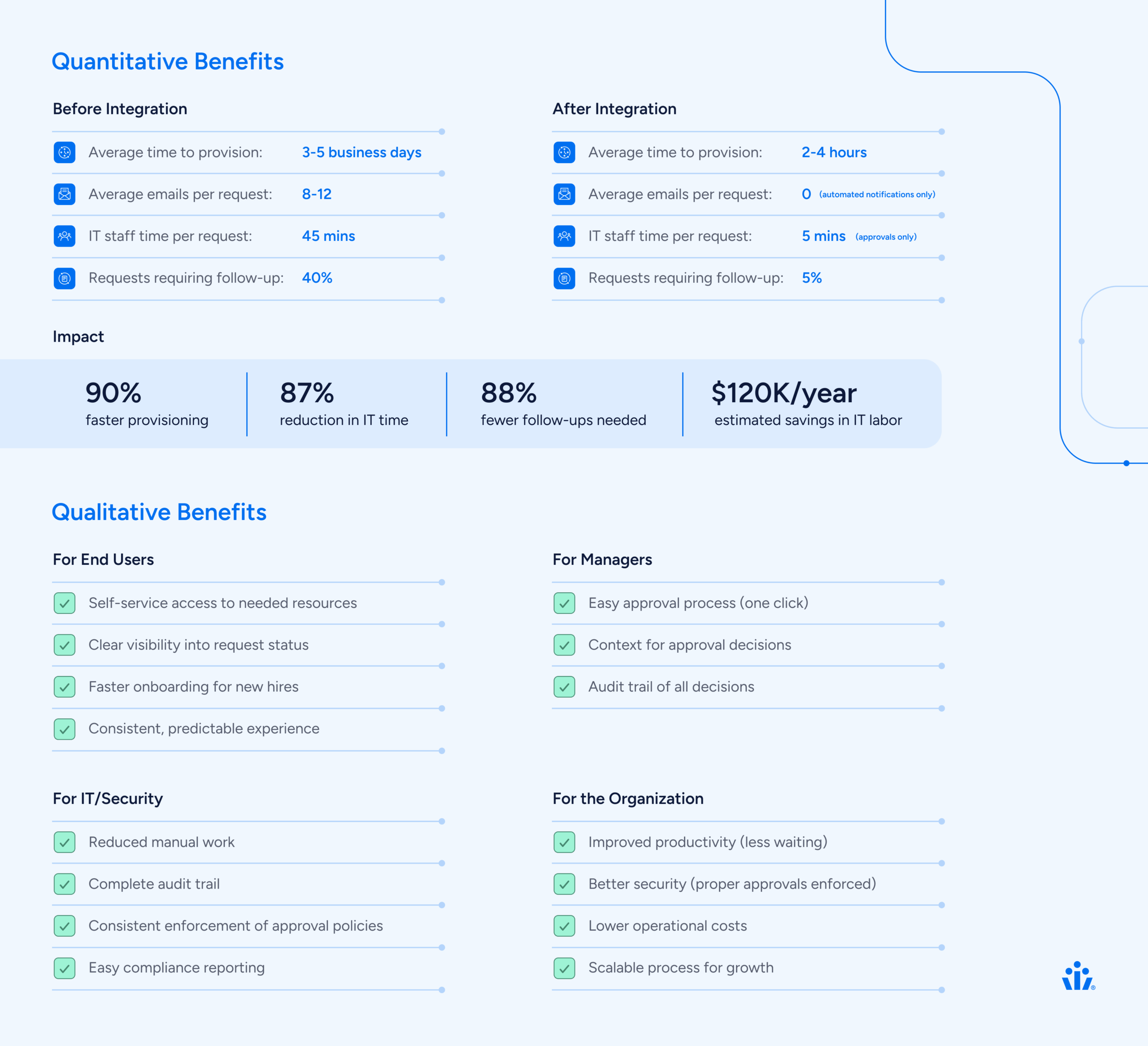

Results & Benefits

Lessons Learned

1. Start Simple, Iterate

We initially tried to build a complex “spawner” pattern with custom RITM creation logic. This worked but was fragile and hard to maintain.

Better approach: Use native ServiceNow features (Order Guide) whenever possible. Custom code should be a last resort.

2. Logging Is Your Friend

Comprehensive logging made troubleshooting 10x easier:

gs.info('VezaGrant: Processing approved task ' + current.number);
gs.info('VezaGrant: Found profile ID: ' + profileId);
gs.info('VezaGrant: User ID: ' + userId);
gs.info('VezaGrant: API call result: ' + result.success);

Every log statement paid dividends during debugging.

3. Test With Real Data Early

Testing with mock data missed issues we only found with real Veza profiles and real user identities.

Example: Email normalization issues only appeared with production data where some emails had uppercase characters.

4. Documentation Matters

We created three levels of documentation:

1. Quick Start – Get running in 30 minutes
2. Complete Setup Guide – All details for production deployment
3. Architecture Documentation – For future developers

This made handoff to operations smooth and enabled others to maintain the integration.

5. Keep It Maintainable

We went through 100+ diagnostic scripts during development. Before releasing, we:

• Consolidated to 7 essential files
• Deleted all one-off testing scripts
• Organized utilities in a separate folder
• Wrote clear README files

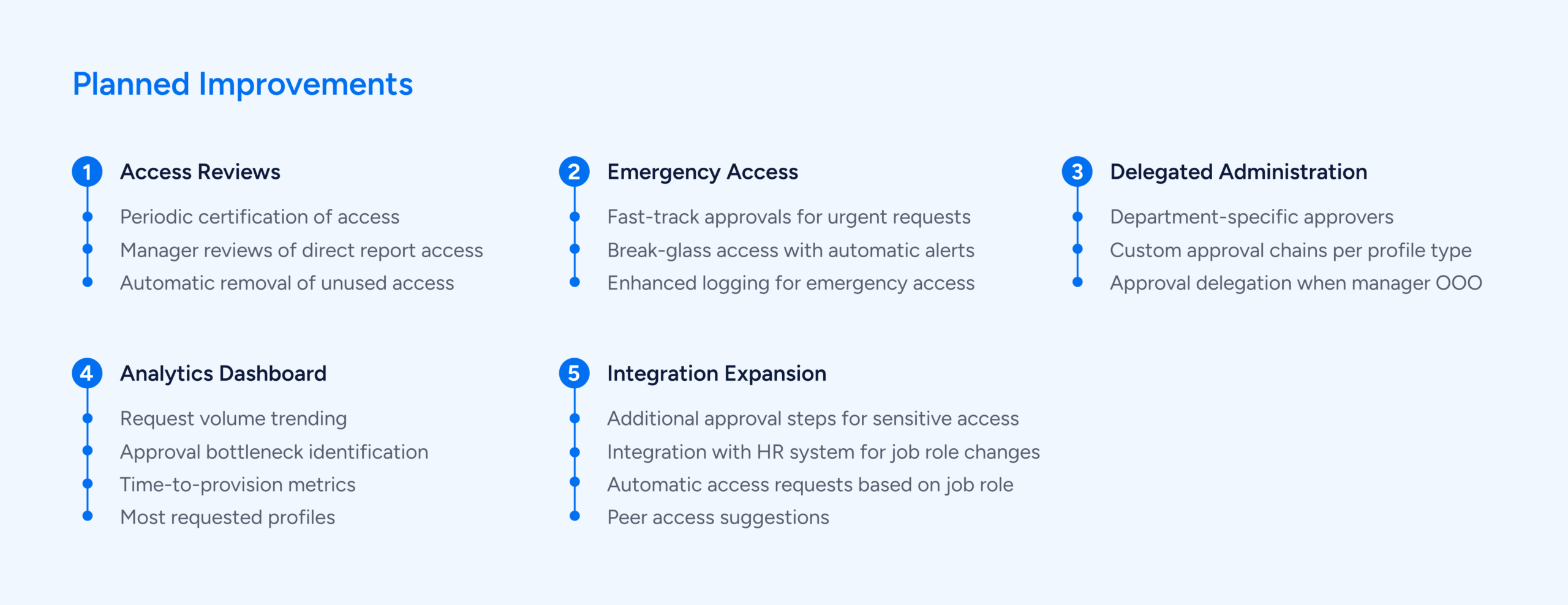

Future Enhancements

Conclusion

Building this Veza-ServiceNow integration transformed our access management process from manual and error-prone to automated and reliable.

Technical Specifications

Platform Versions:

• ServiceNow: Tokyo release or later
• Veza: Lifecycle Management API v1

Veza API Endpoints Used:

GET /api/private/lifecycle_management/identities

GET /api/private/lifecycle_management/access_profiles

PUT /api/private/lifecycle_management/access_profiles/{id}/versions/1/members

ServiceNow Tables Modified:

sc_cat_item - Catalog items

sc_req_item - Requested items

sc_task - IT tasks

sysapproval_approver - Approvals

item_option_new - Variable definitions

Custom Components:

• 1 Script Include (VezaAPI)
• 3 Business Rules (approvals, IT tasks, access grant)
• 1 Scheduled Job (catalog sync)
• 1 Order Guide

Resources

Veza Documentation: https://docs.veza.com/

ServiceNow Documentation: https://docs.servicenow.com/

Interested in learning more? Contact Support@veza.com
